Auxiliary Fuel Tank

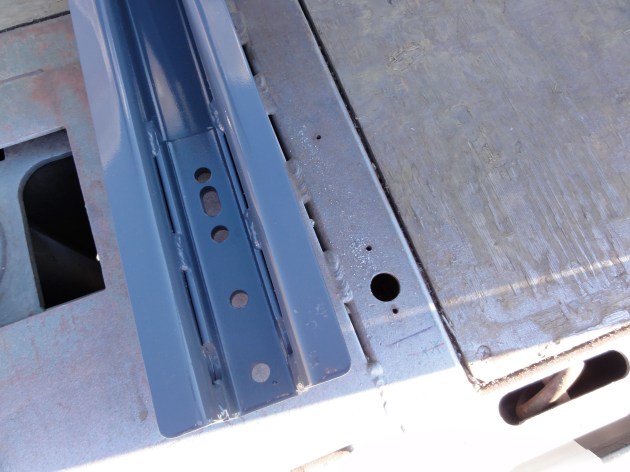

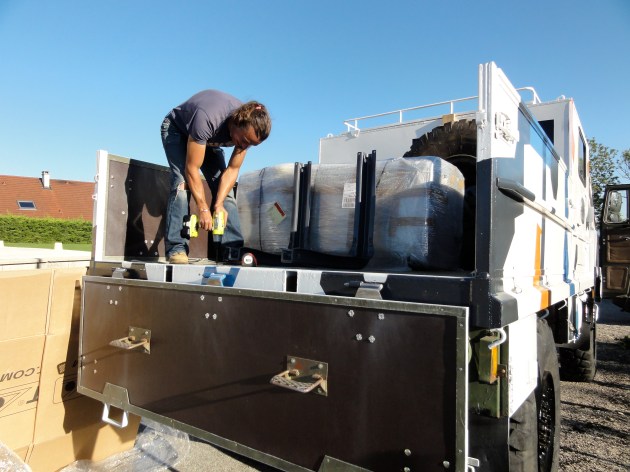

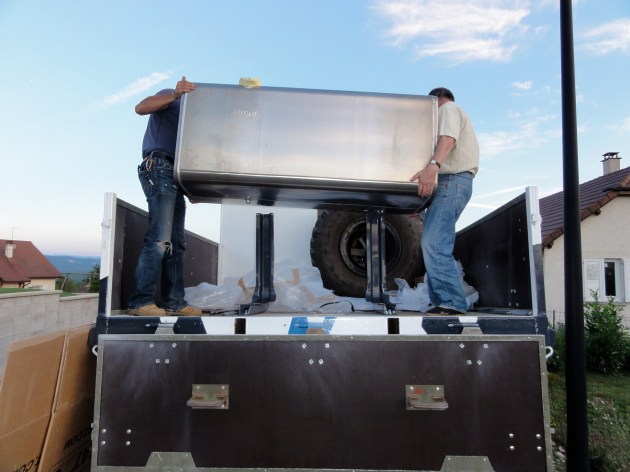

We mounted a 630 liter auxiliary fuel tank in the truck bed to have sufficient autonomy for several days of driving in the dunes. Since we don’t know yet how much the engine will consume in those conditions, we can only estimate how many kilometers we’ll be able to travel before we need to find a gas station. With the main and auxiliary tanks both full, we may be able to drive up to 1,600 km before needing to fill up the tanks.

Originally published on Tumblr

Sleeping Arrangements

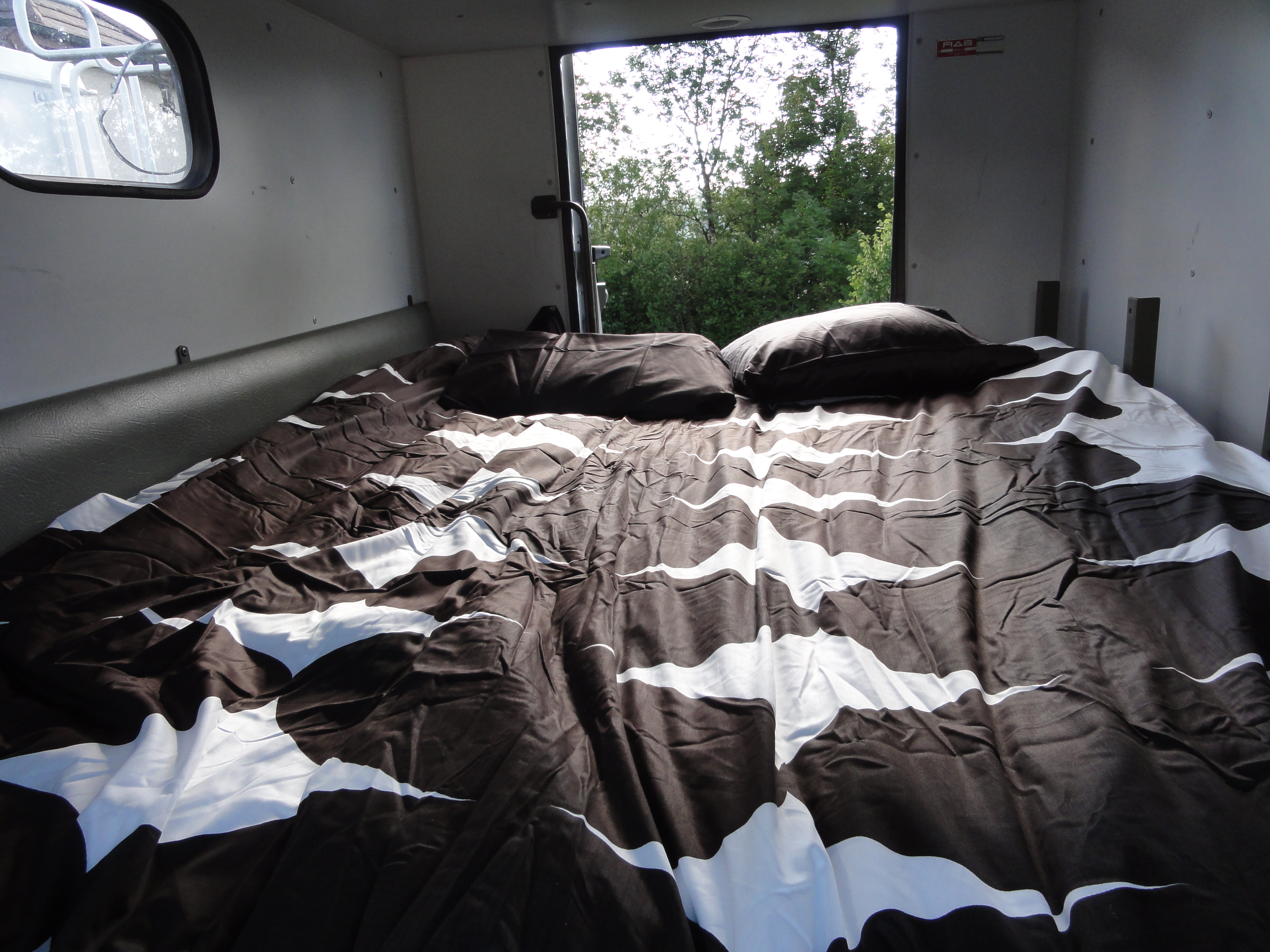

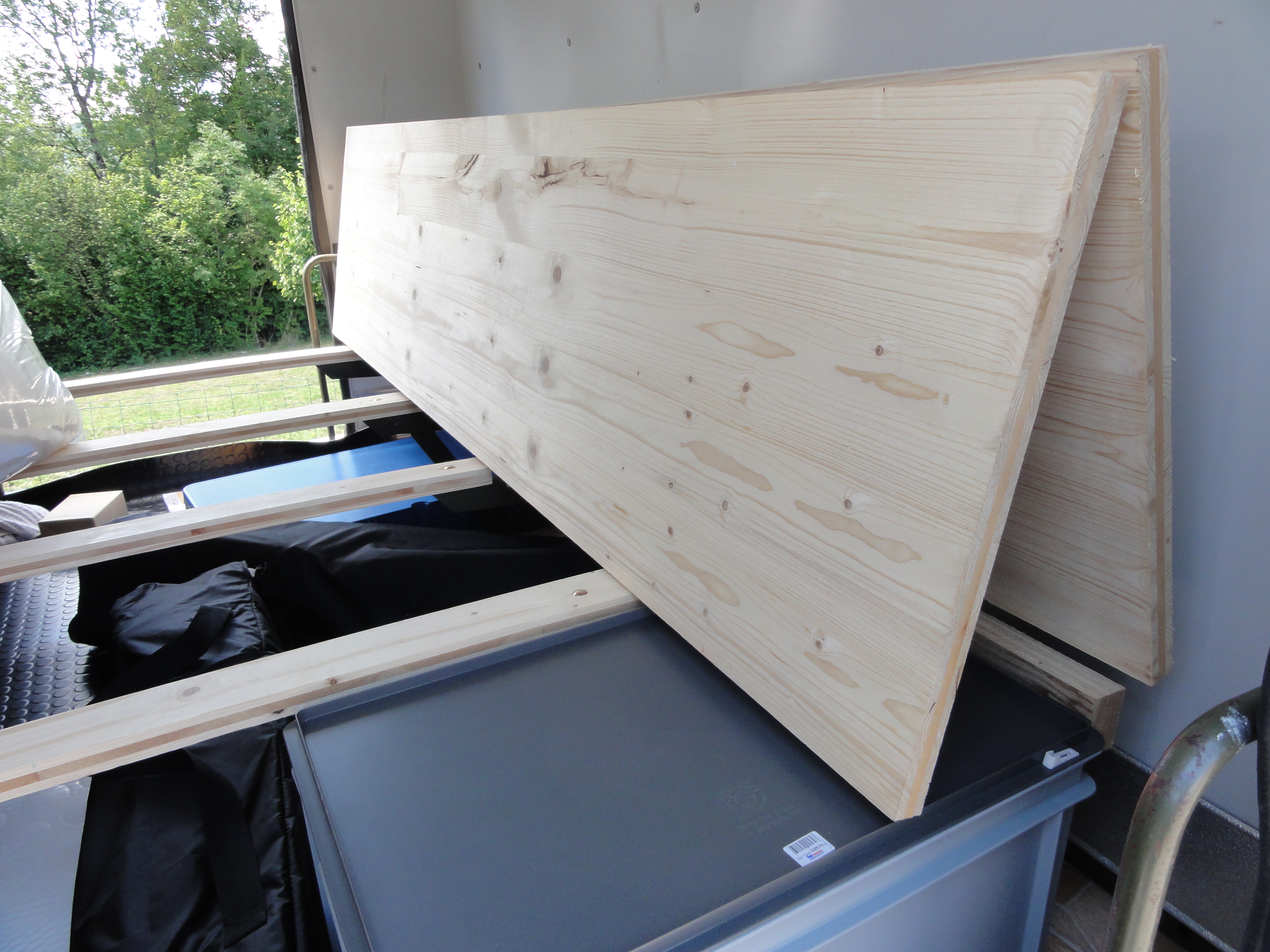

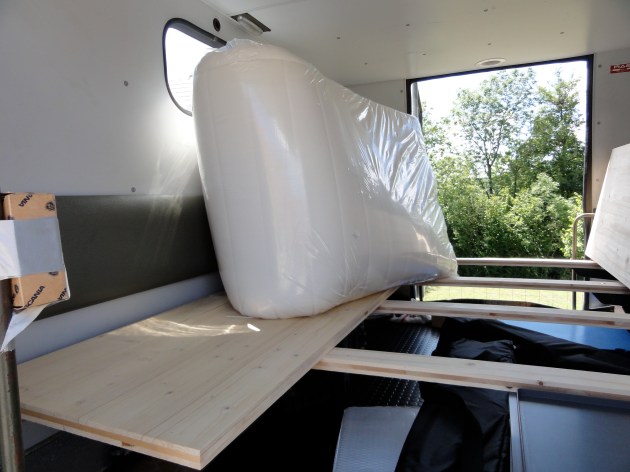

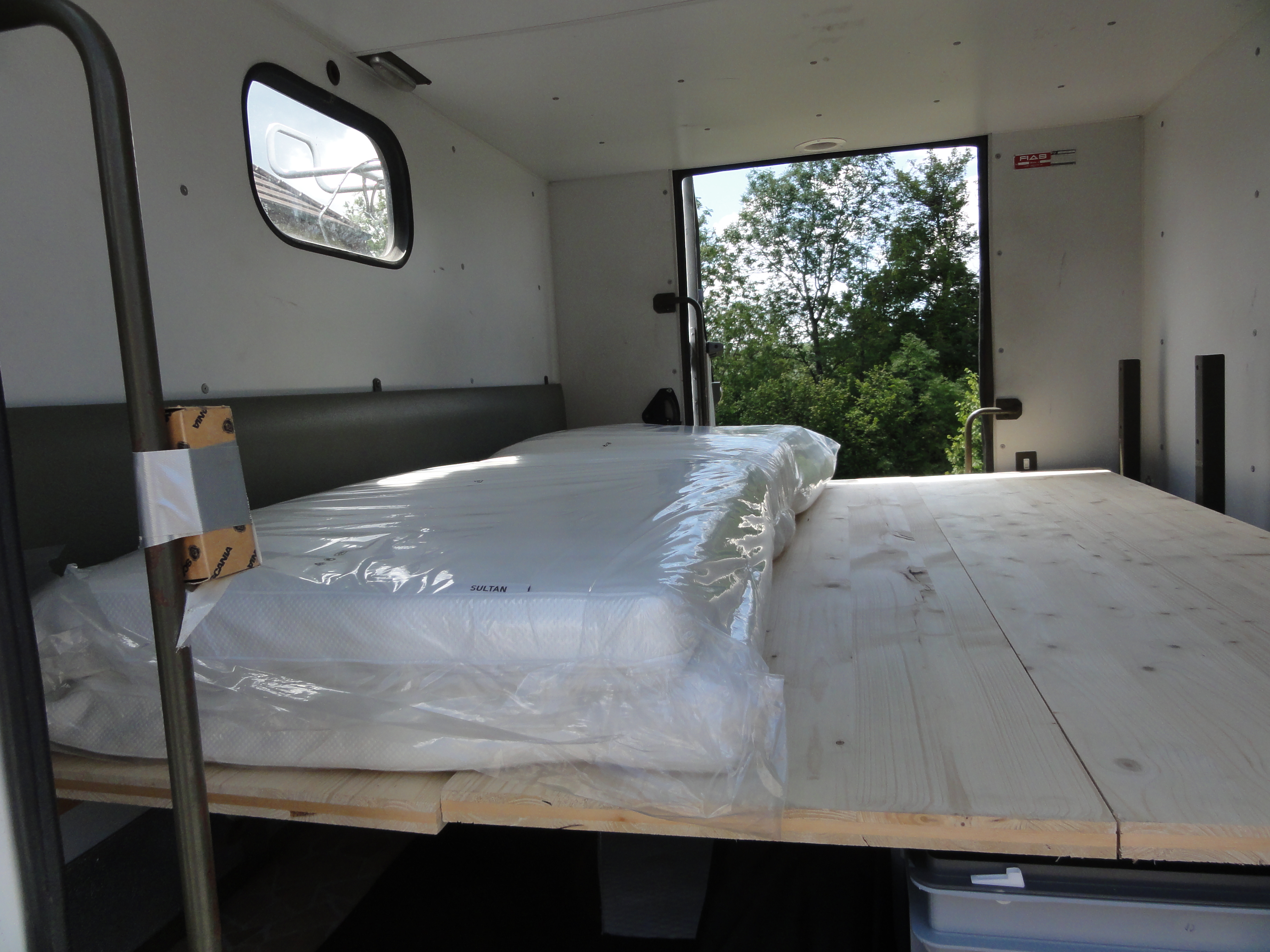

A sleeping and storage area was created in the personnel cabin. We removed the bench seats on both sides and attached slats to the metal support arms to create a structure that reinforces the panels on which the mattress lies. The area under the bed serves as storage for clothing, cooking and camp supplies. Use of three hinged panels allows them to be raised for better access to the stowed items.

Originally published on Tumblr

Paint Design

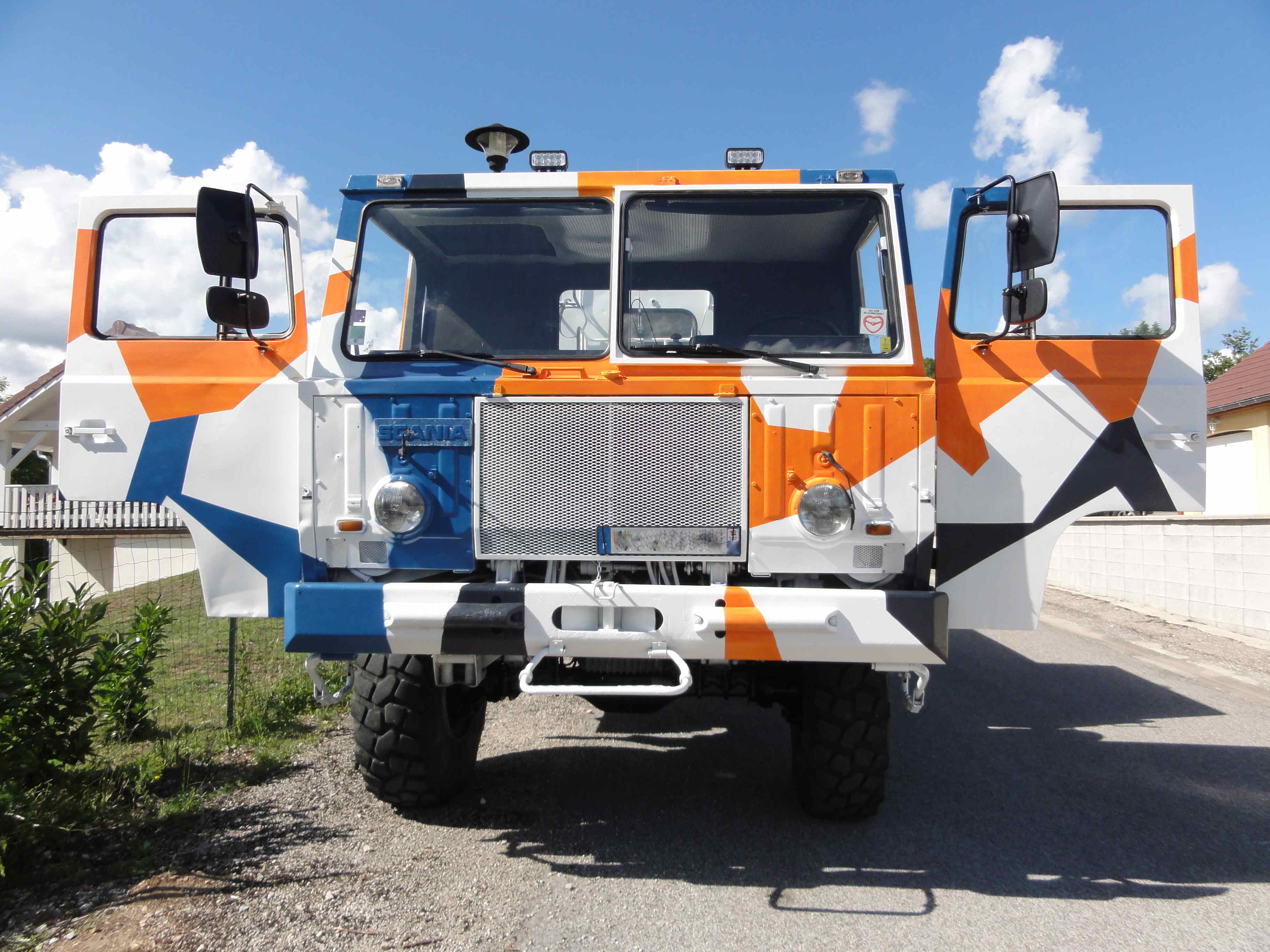

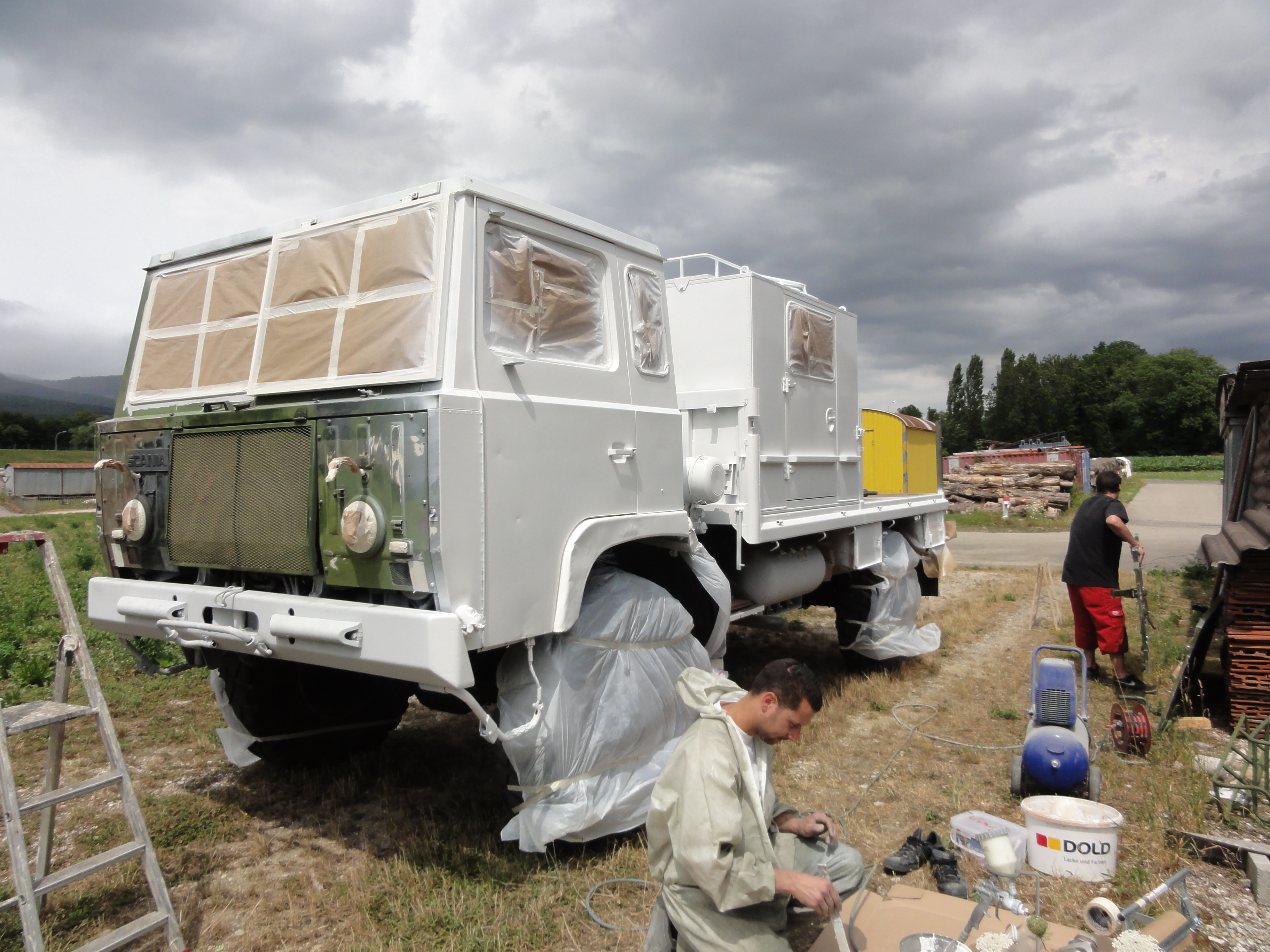

Just for fun, we added a splash of color. The design is reminiscent of the original Swedish army camouflage patterns, but by using bright colors and minimizing the patterns, the allusion remains subtle and the dominant impression is more harlequin than military.

Originally published on Tumblr

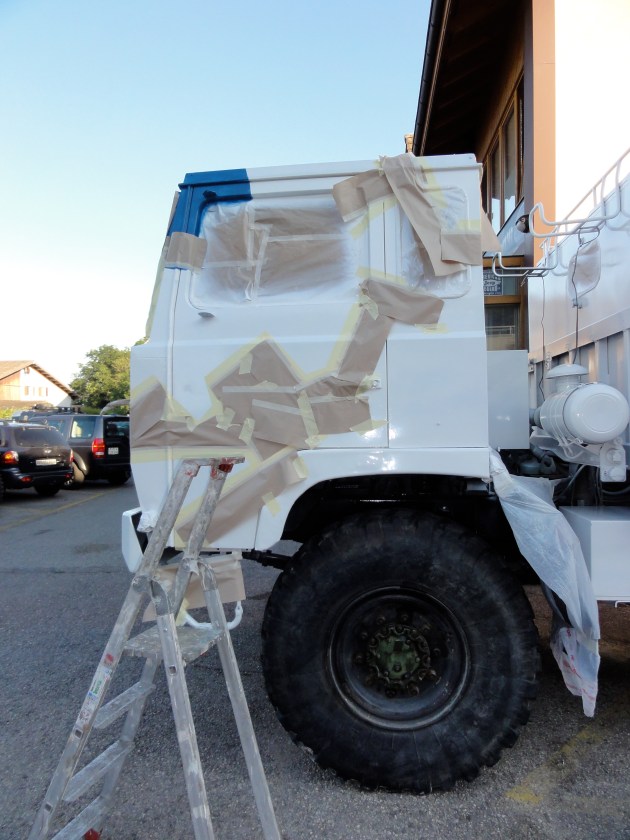

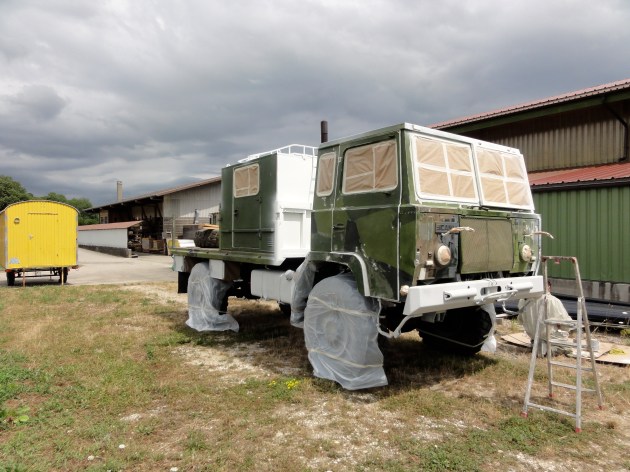

Military camouflage colors are not a welcome sight everywhere, so repainting was important.

Originally published on Tumblr

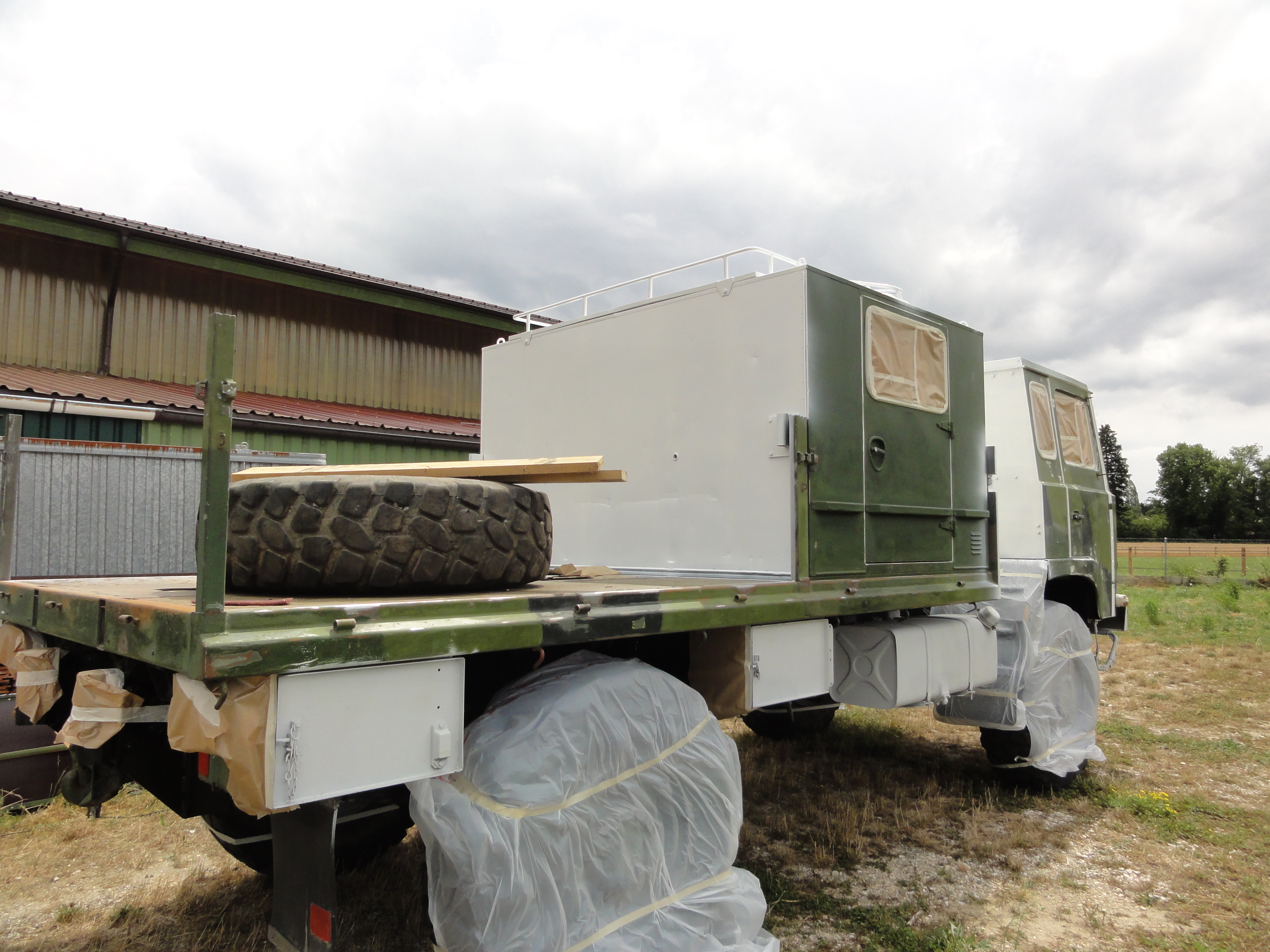

Lifting the personnel cabin onto the truck bed

Originally published on Tumblr


Preparation for the first voyage started in the spring. The first item of business was to clean and protect the chassis: removing the worst areas of rust, applying a base coat to protect the metal and then painting with the final layer. We painted the chassis black.

Once the work on the chassis was completed, it was time to place the personnel cabin on the bed and bolt it into place. The cabin weighs 500 kg, so we needed a mechanical lift to hoist it.

Because our truck had not been fitted with a cabin, the spare tire had been mounted onto the front of the truck bed. When the cabin was moved into place, we realized that the tire bracket would need to be removed into order to place the cabin correctly on the bed and bolt it into place.

Once the cabin had been mounted, general maintenance could begin. We replaced all the worn cables and hoses, and performed a complete oil change of the motor (25 liters), the gearbox/transfer case (32 liters), the axles (4 liters per axle) and hubs (0.5 liter per hub).

The work was performed with the help of a friend who owns a garage specialized in the preparation of 4×4 vehicles for rock crawling and cross country rallies.

Originally published on Tumblr

Unloading the Personnel Cabin

Originally published on Tumblr

Not Your Grandparents’ Camper

During the winter we also located and acquired a personnel cabin, which had not been fitted onto our truck, and organized the shipping from Sweden.

The cabin will be bolted onto the truck bed and the two benches inside removed to make space for a sleeping and storage area.

Originally published on Tumblr.
